Uncertainty analysis of elevation data based on groundwater modeling system: A case study of Zhaozhou County, China

Yun-fei Bai^{1, 2},
Zhi-jun Li^{1, 2
, ,},
Qing Ru^{1, 2},
Bo-rui Wang^{1, 2},
Jia-jun Li^{1, 2}

1.
School of Hydraulic and Electric-Power, Heilongjiang University, Harbin 150080, China
2.
Institute of Groundwater in Cold Regions, Heilongjiang University, Harbin 150080, China

More Information

Corresponding author: lizhijun78@163.com

摘要

- /
- /
- /
- /
Abstract: This study takes Zhaozhou County in the Songnen Plain (a plain area with sparse borehole data) as the study area, and aims to address the issue of elevation data sources' impact on groundwater numerical simulation by comparatively analyzing the application effects of the Shuttle Radar Topography Mission Digital Elevation Model 90M (SRTM DEM 90M) and interpolated elevation derived from 25 actual boreholes and 14 virtual boreholes (synthetic borehole points derived from DEM data and corrected using nearby measured boreholes). The results show that: The elevation of SRTM DEM 90M can reflect regional microtopographic features; borehole interpolation has single-point errors (−5 m to 10 m) and interpolation uncertainty, and the over-smoothed terrain leads to a relative deviation of 40%–50% in unsaturated zone thickness in specific areas, which further results in a maximum reduction of 93% in evaporation (from 93.92 m³/d to 6.34 m³/d). Regarding simulation accuracy, the traditional water level dynamic fitting of both models meets the required standards, but the Nash-Sutcliffe Efficiency (NSE) value of water level fitting for the borehole model is negative, while the statistical indicators of the SRTM model meet the standards. This study confirms that: (1) the "parameter combination effect" plays a dominant role in simulation: Simulation results are essentially the integrated product of multi-parameter interaction; (2) in borehole-sparse areas similar to the Songnen Plain, SRTM DEM 90M can replace borehole interpolation.
- Groundwater /
- Digital Elevation Model /
- Borehole interpolation /
- Simulation accuracy /
- Parameter combination effect

HTML全文

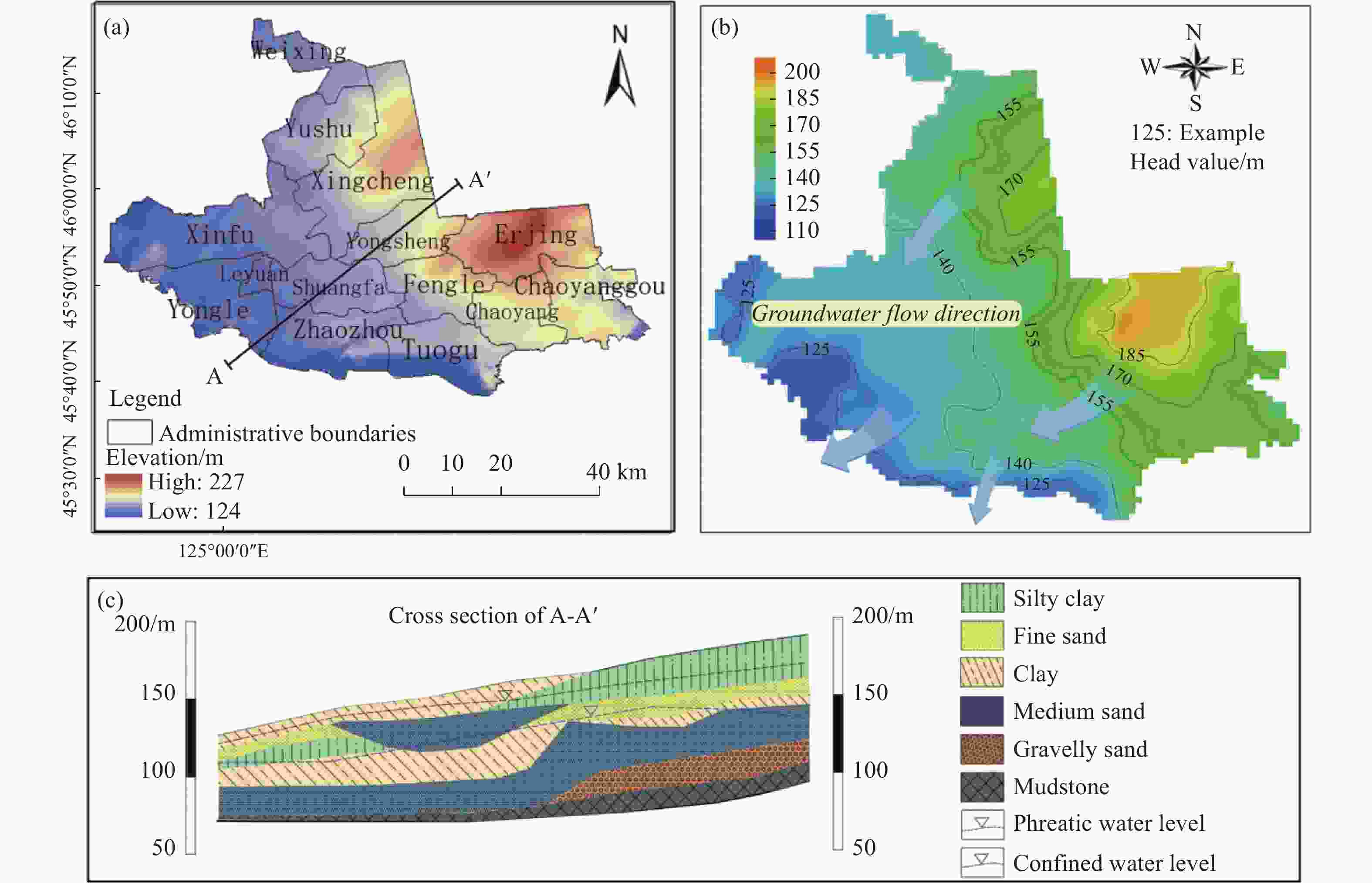

Figure 1. Geographical map of the study area. (a) geographical location of the Songnen Plain and provincial administrative boundaries; (b) location of Zhaozhou County (the study area) within the Songnen Plain

下载: 全尺寸图片幻灯片

Figure 2. The information on topographic elevation, township distribution, groundwater flow direction, and A-A' hydrogeological profile of the study area. (a) topographic elevation and township distribution; (b) groundwater flow direction; (c) A-A' hydrogeological profile

下载: 全尺寸图片幻灯片

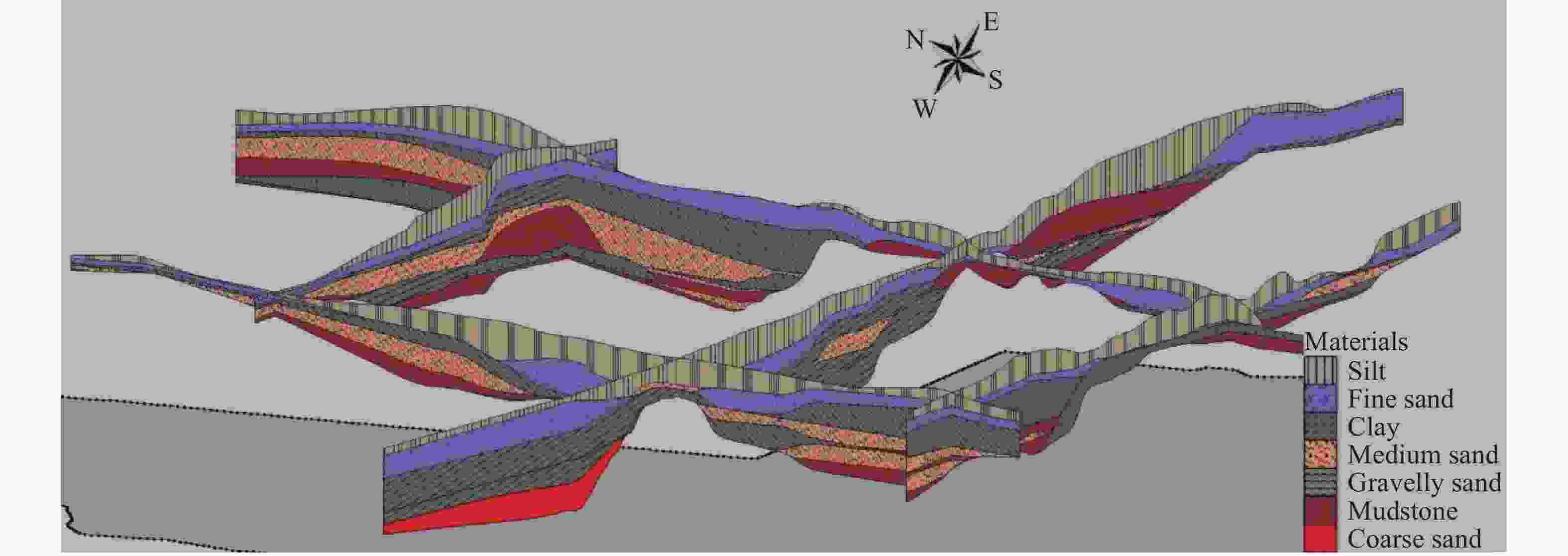

Figure 3. Three-dimensional geological profile

下载: 全尺寸图片幻灯片

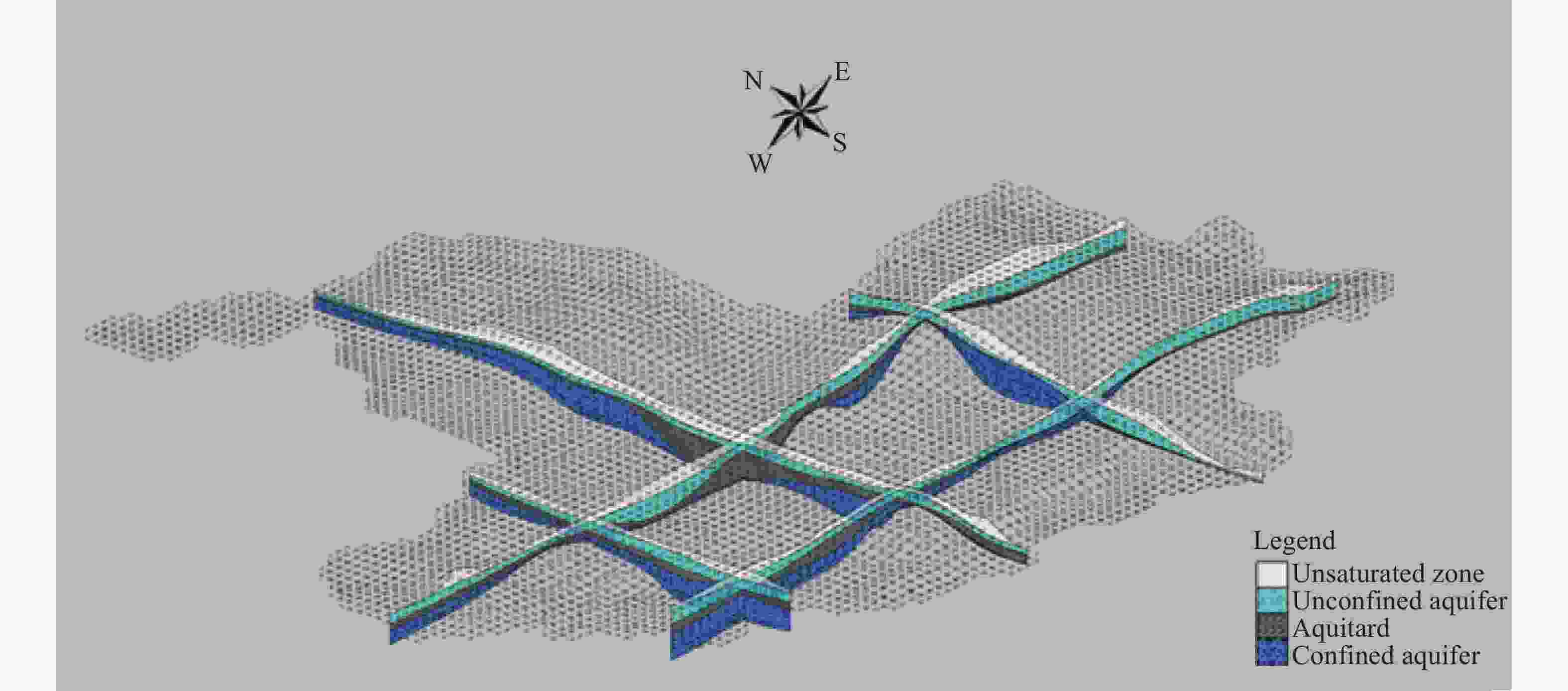

Figure 4. Aquifer system profile

下载: 全尺寸图片幻灯片

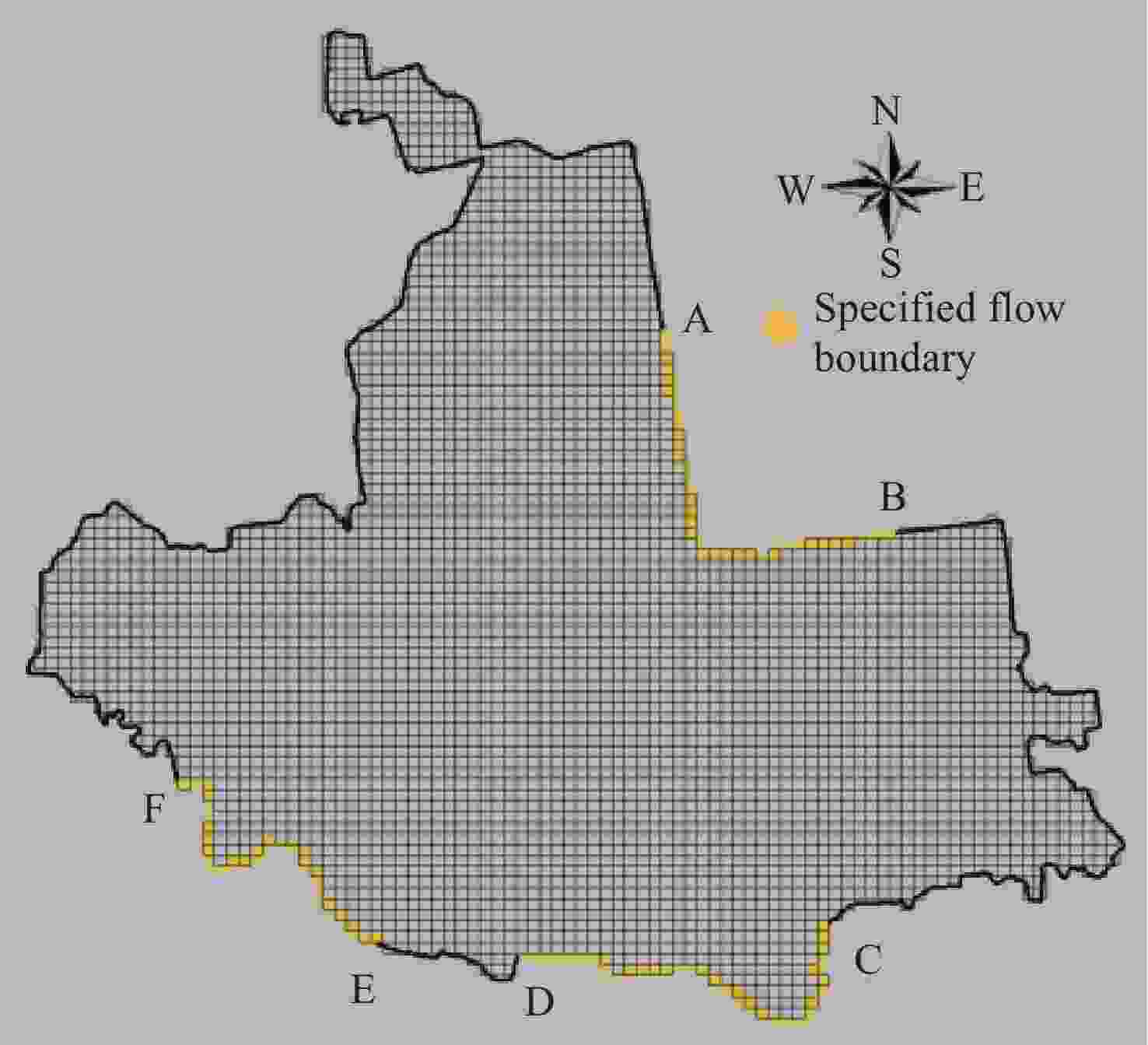

Figure 5. Boundary conditions of the study area

下载: 全尺寸图片幻灯片

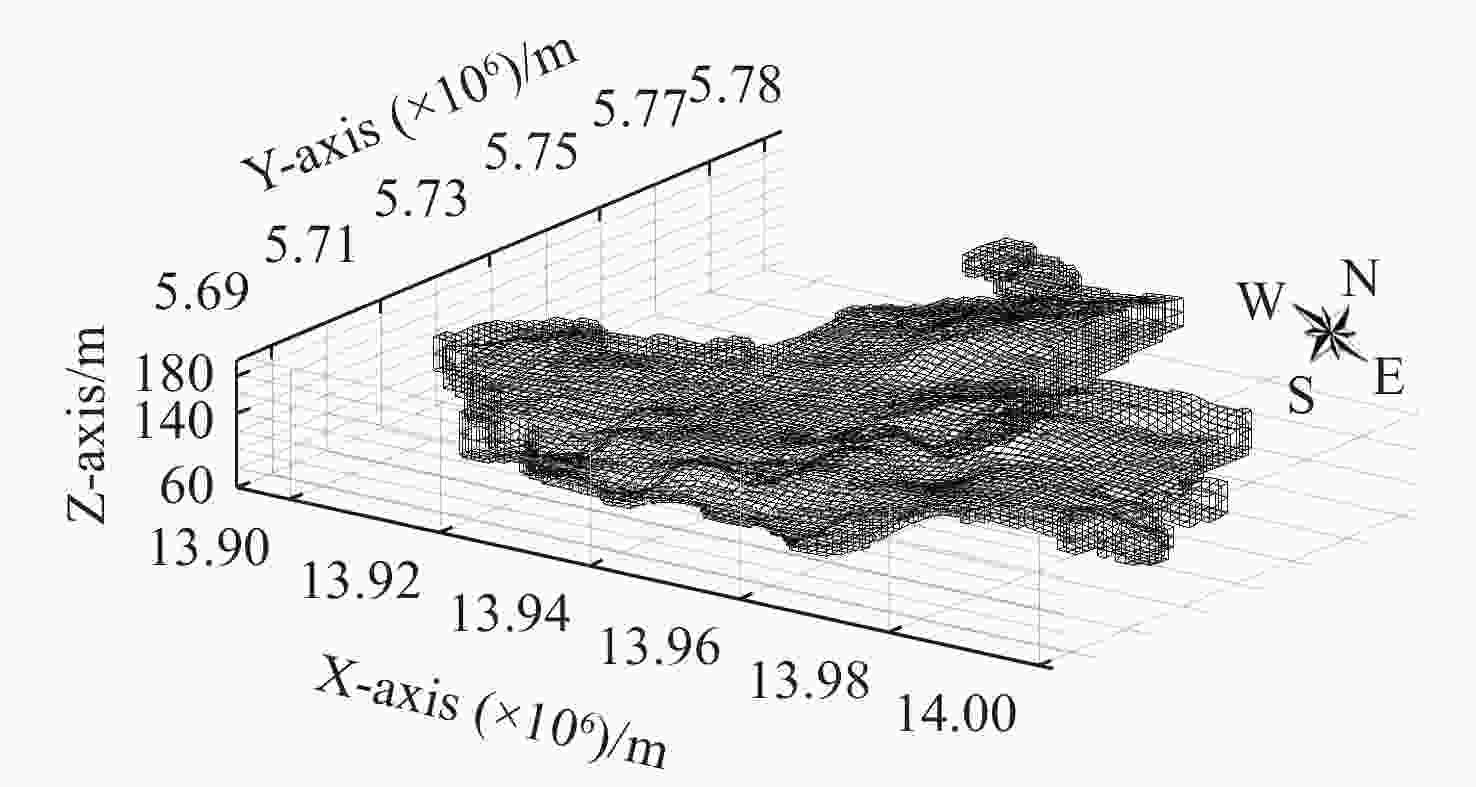

Figure 6. Three-dimensional odel grid

下载: 全尺寸图片幻灯片

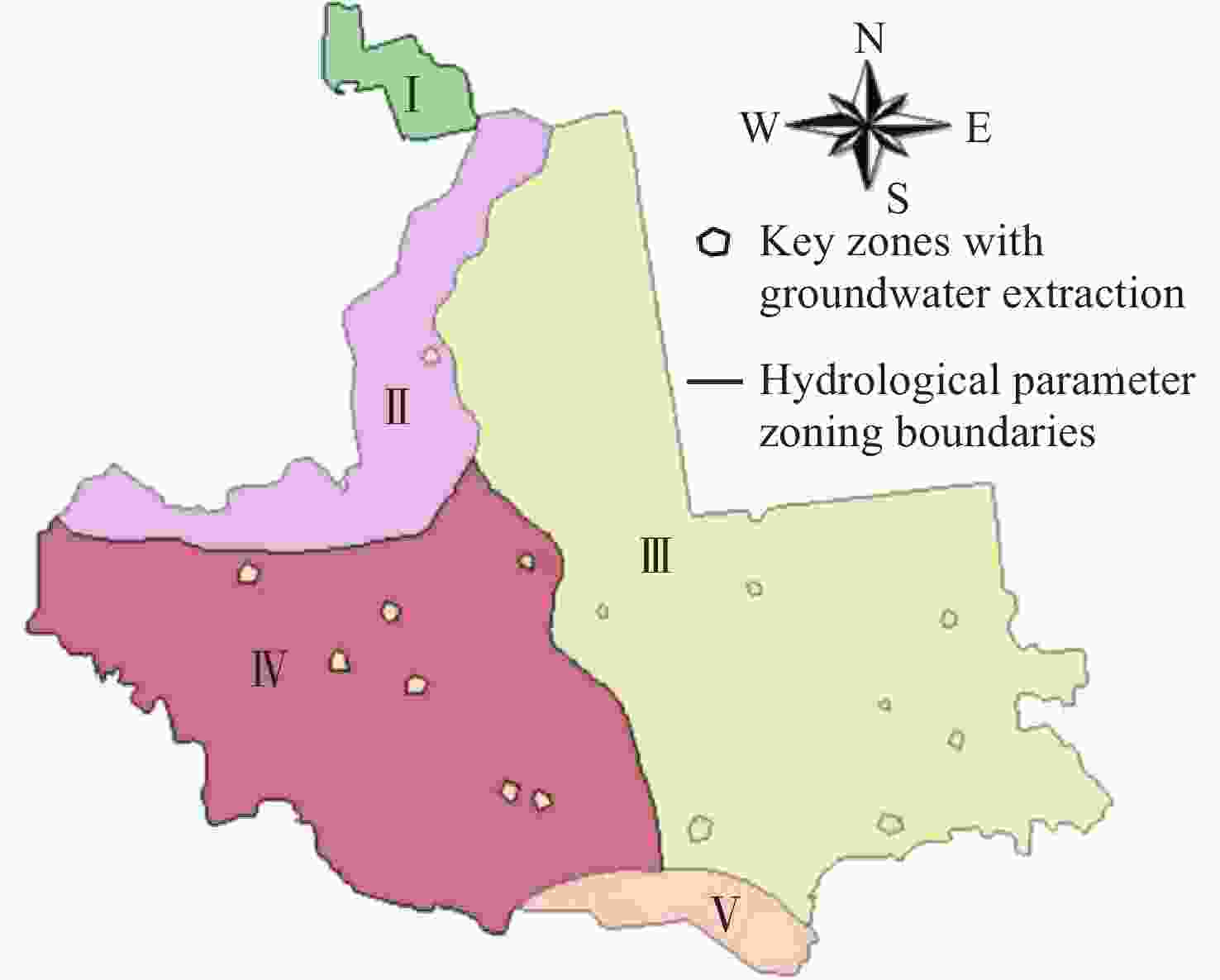

Figure 7. Hydrological parameters zoning

下载: 全尺寸图片幻灯片

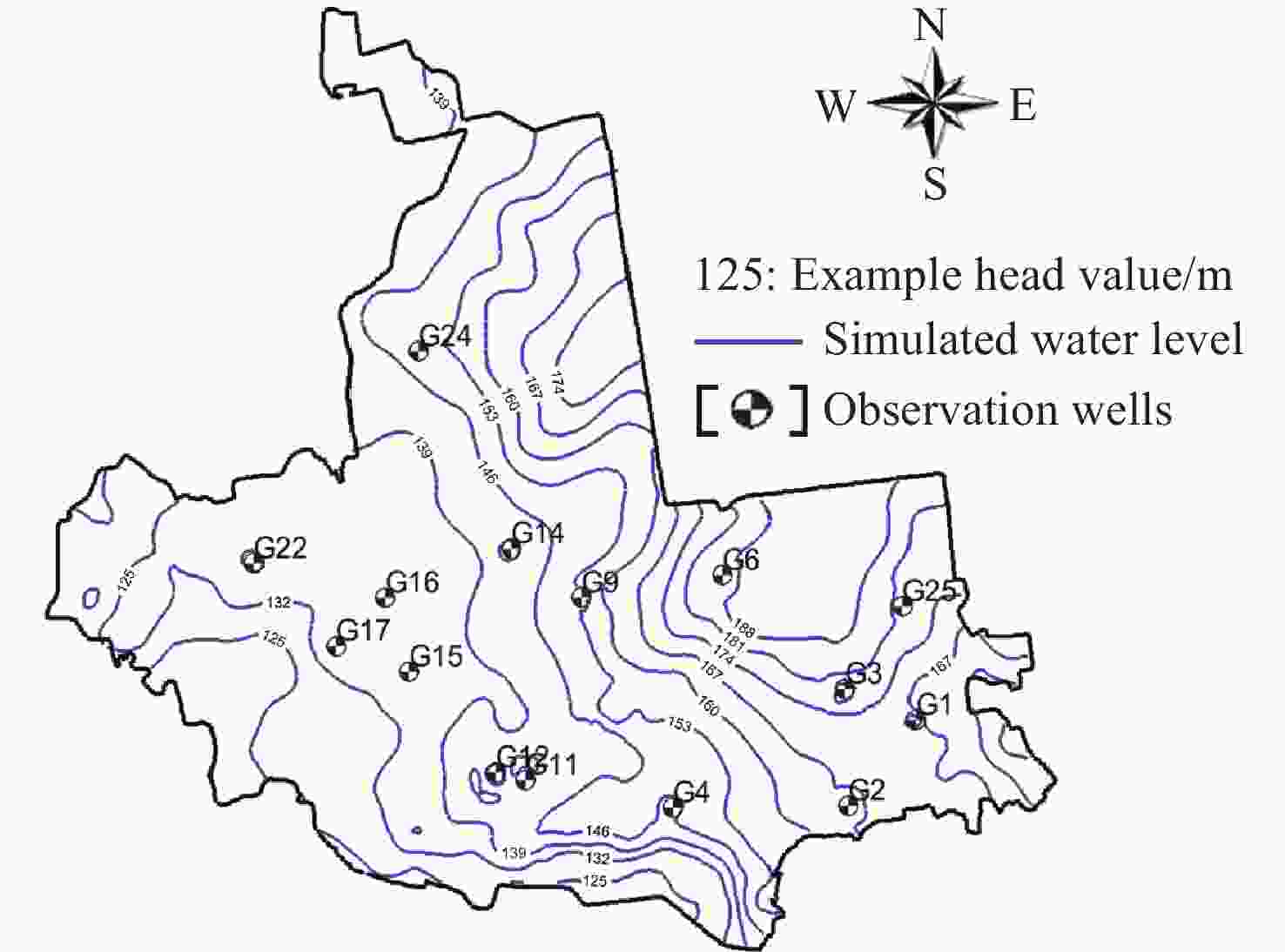

Figure 8. Distribution of observation wells and simulated water level

下载: 全尺寸图片幻灯片

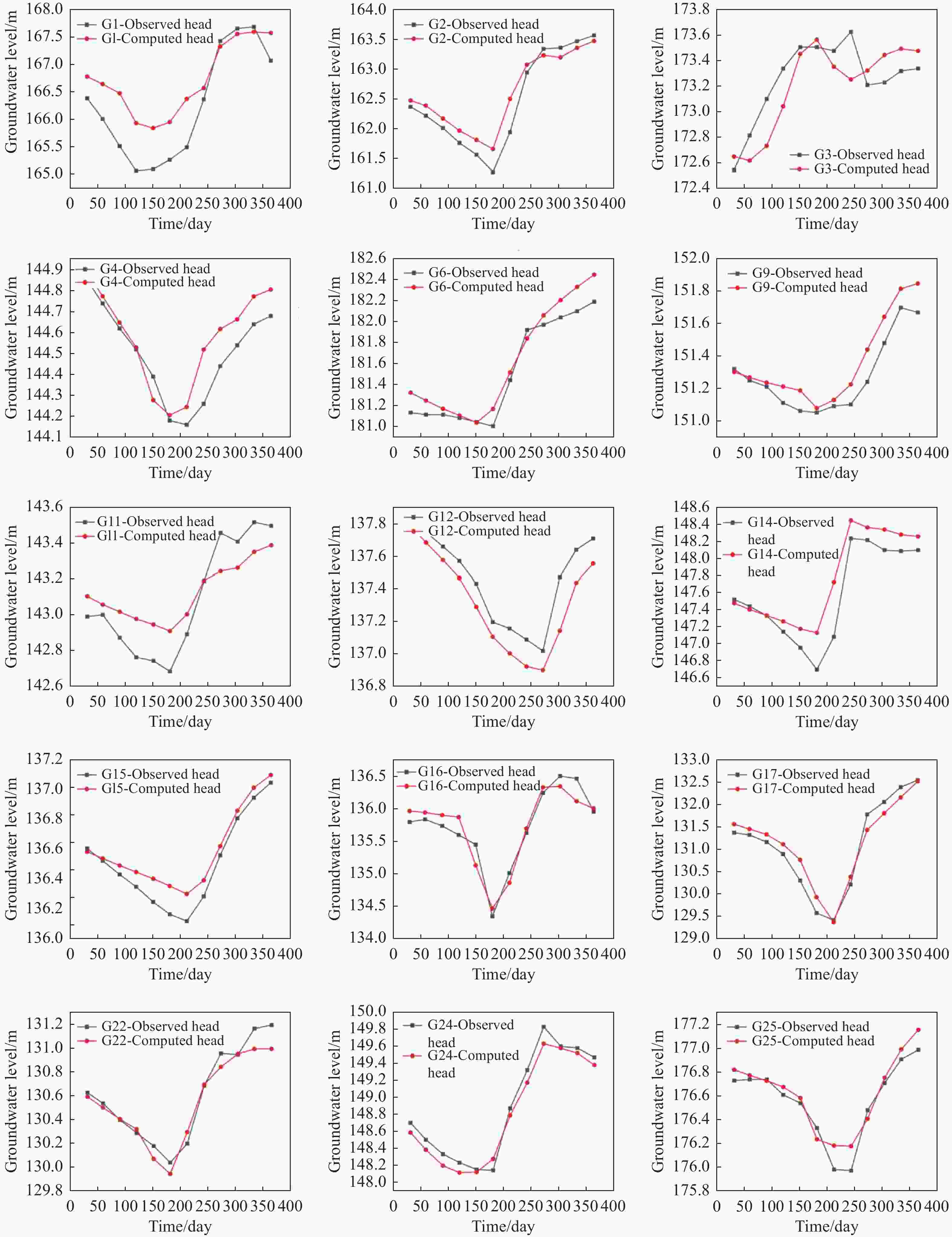

Figure 9. Comparison chart of computed (red) and observed (black) water levels

下载: 全尺寸图片幻灯片

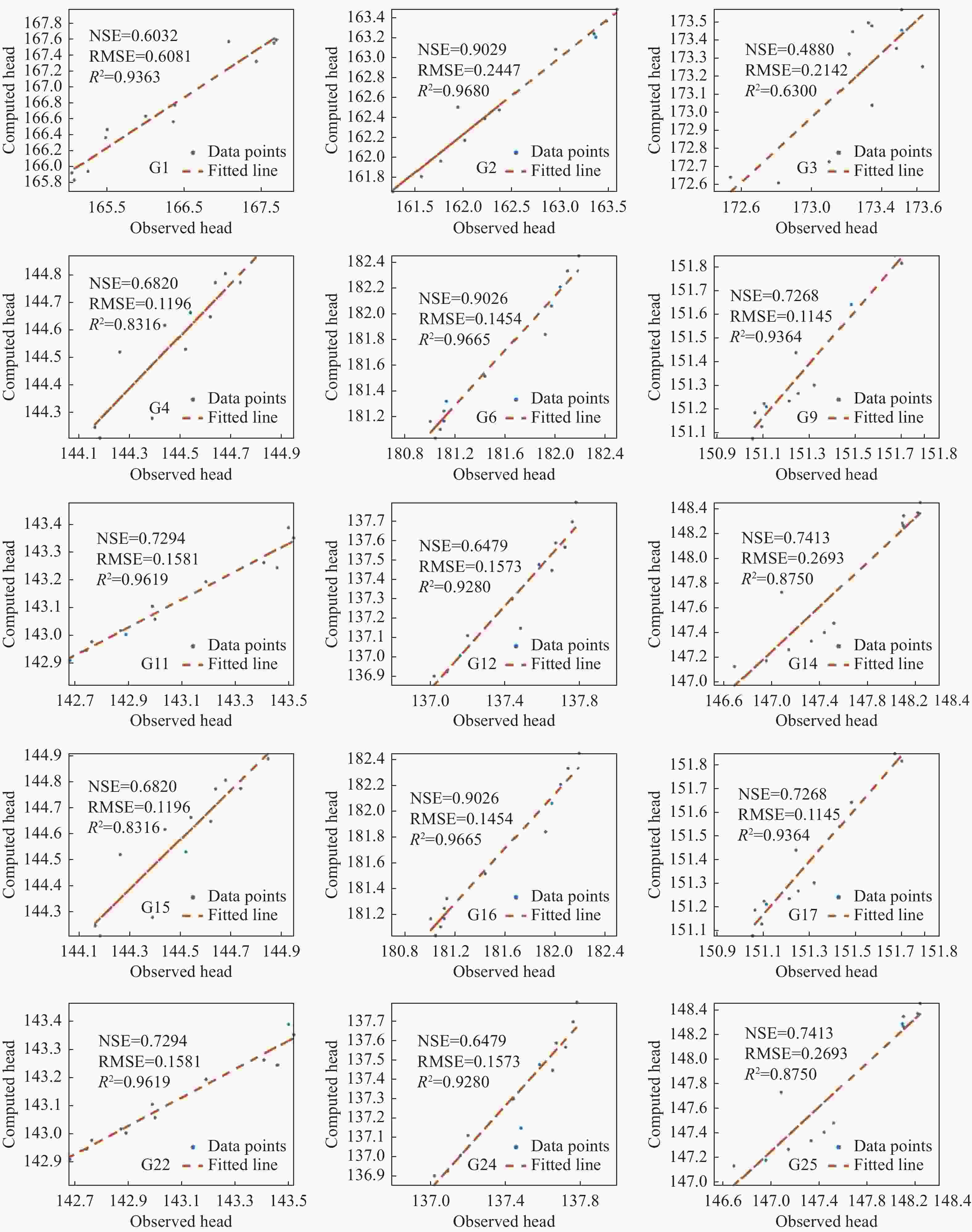

Figure 10. Scatter Plot with Fit Line

下载: 全尺寸图片幻灯片

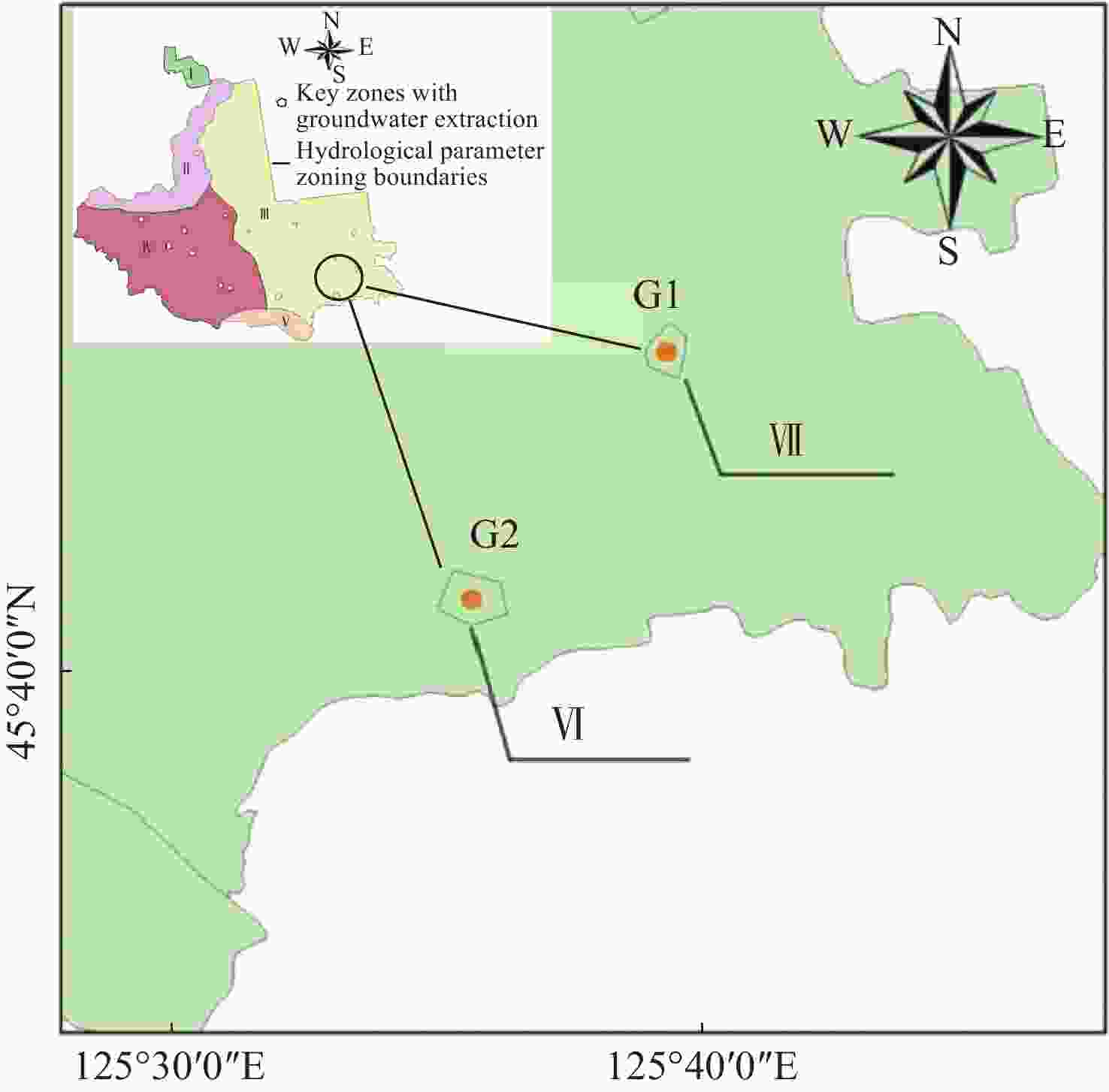

Figure 11. Local zoning for G1 and G2

下载: 全尺寸图片幻灯片

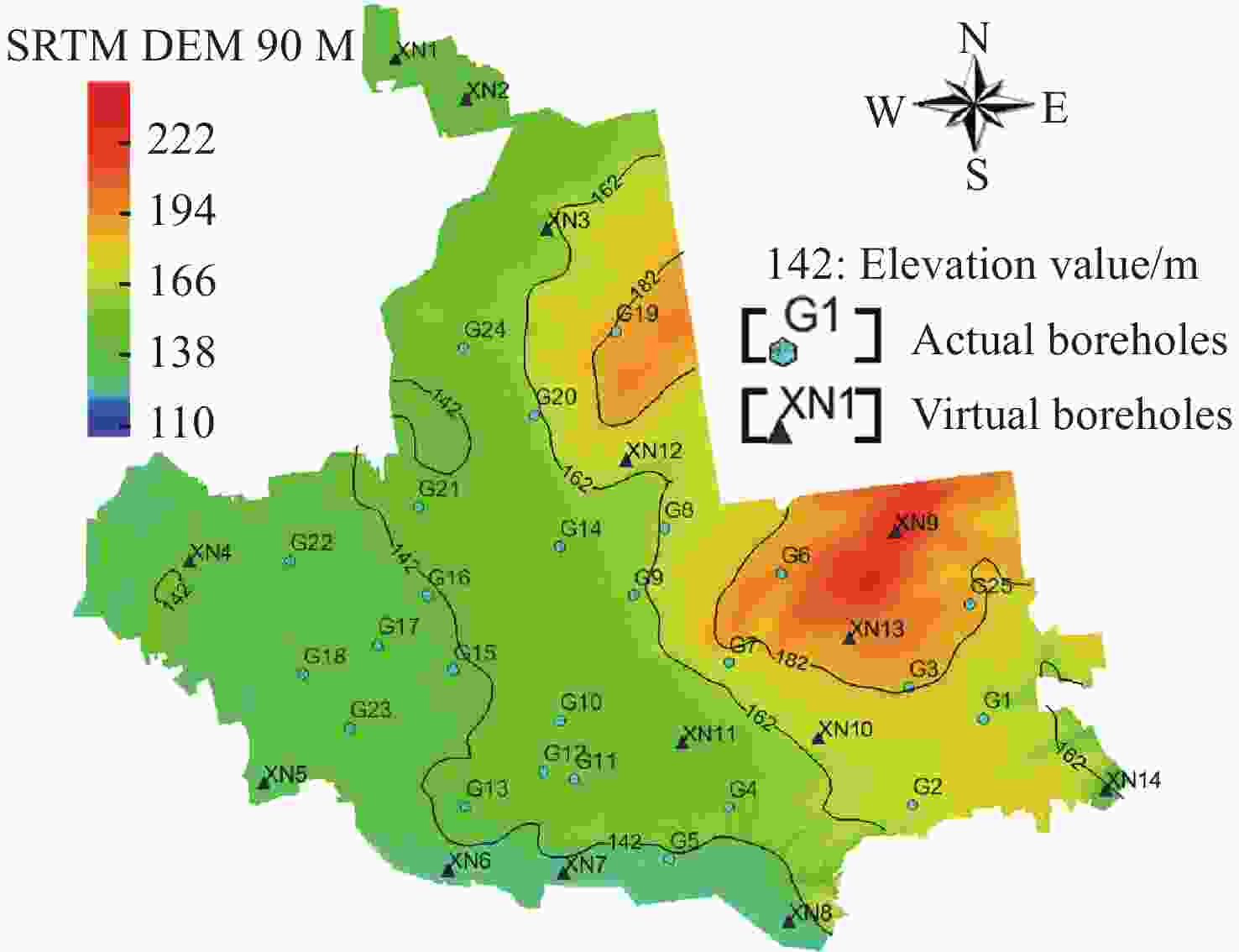

Figure 12. Distribution of actual and virtual boreholes

下载: 全尺寸图片幻灯片

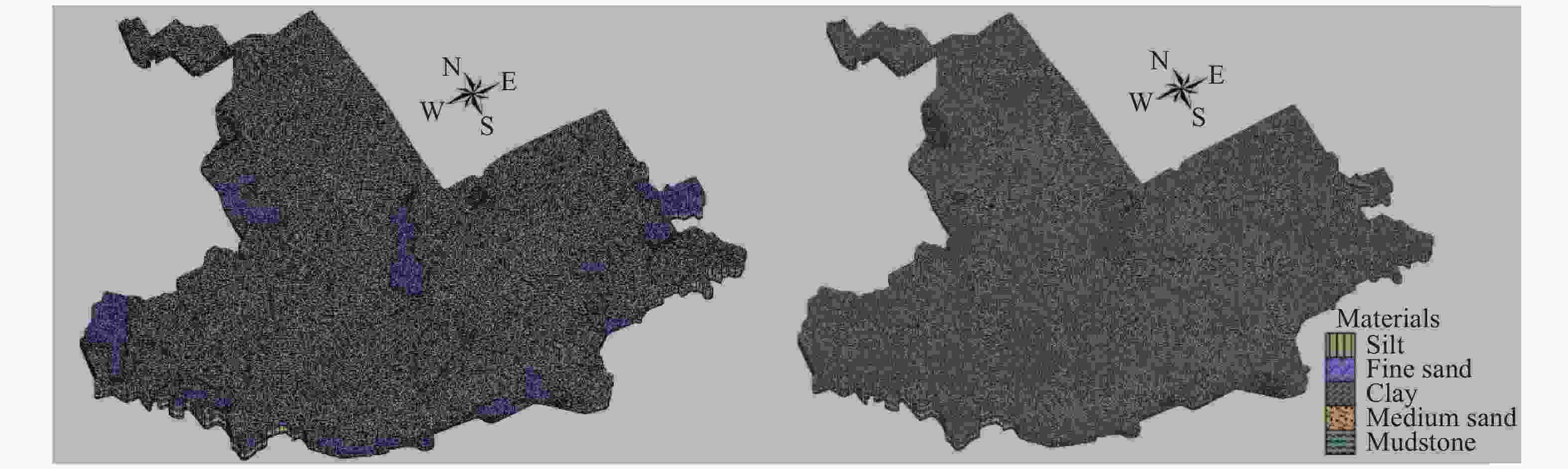

Figure 13. Surface elevation comparison (left - SRTM DEM, right - Borehole elevation)

下载: 全尺寸图片幻灯片

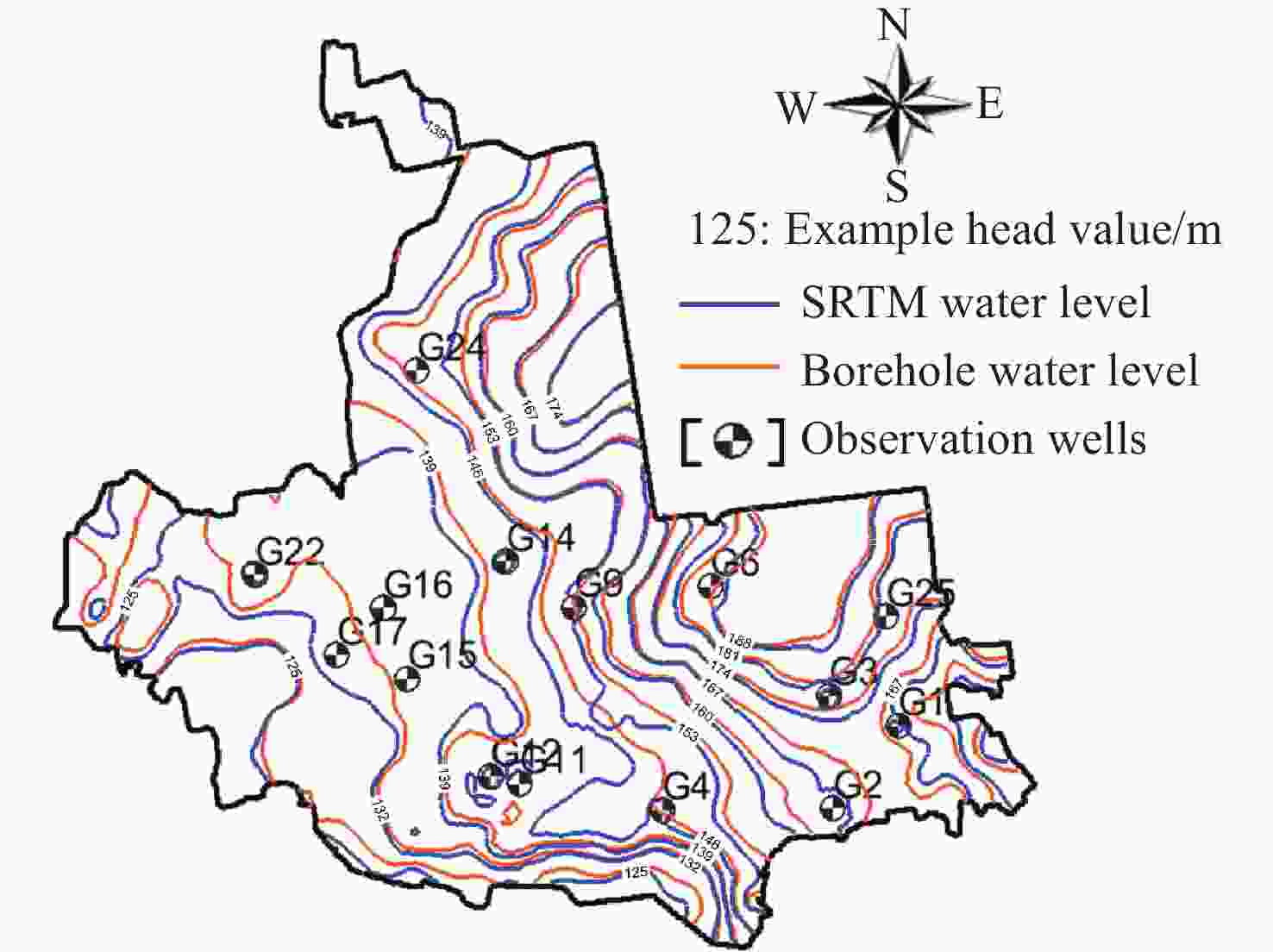

Figure 14. Comparison of simulation results

下载: 全尺寸图片幻灯片

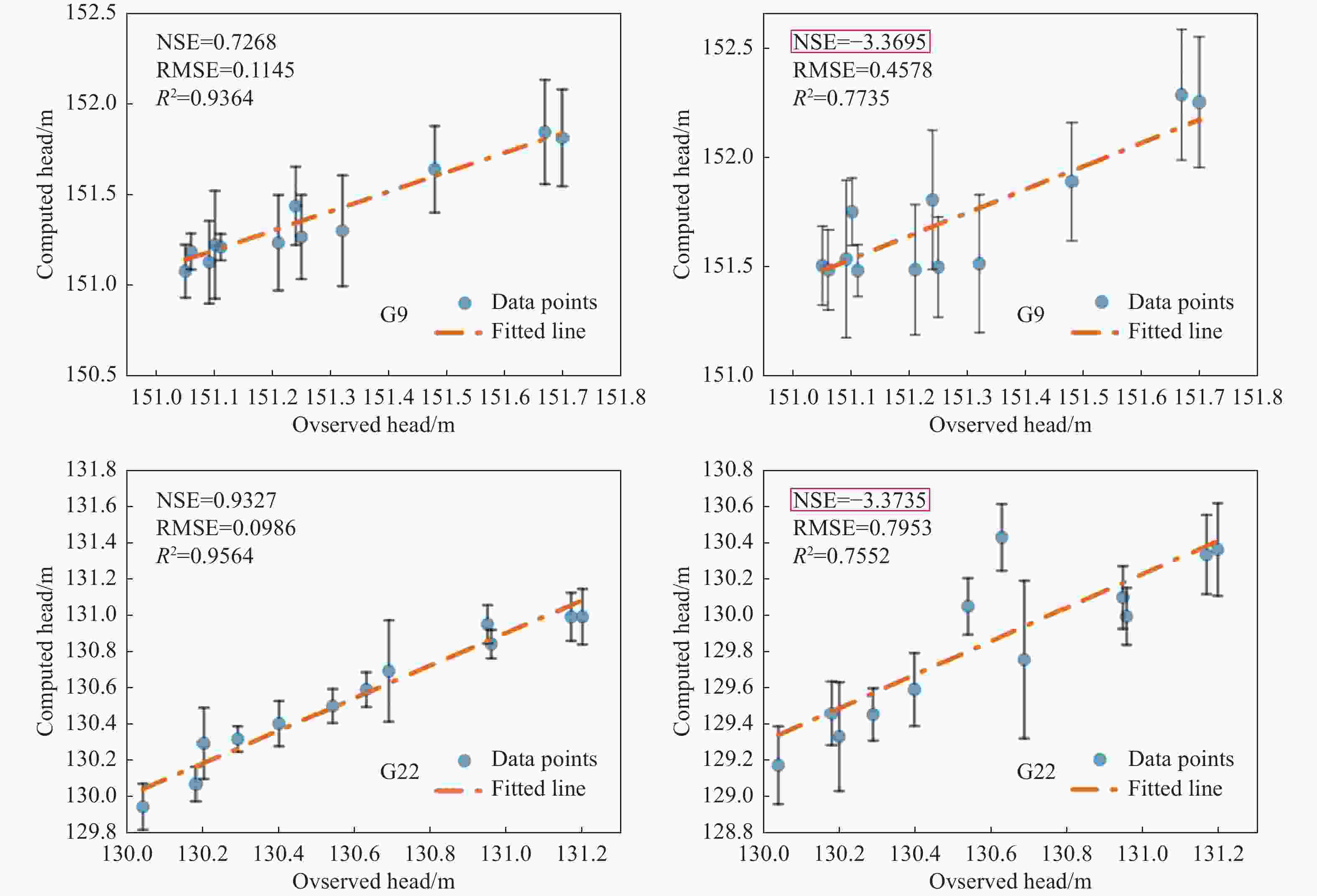

Figure 15. Statistical indicator comparison chart (left - SRTM DEM, right - Borehole elevation)

下载: 全尺寸图片幻灯片

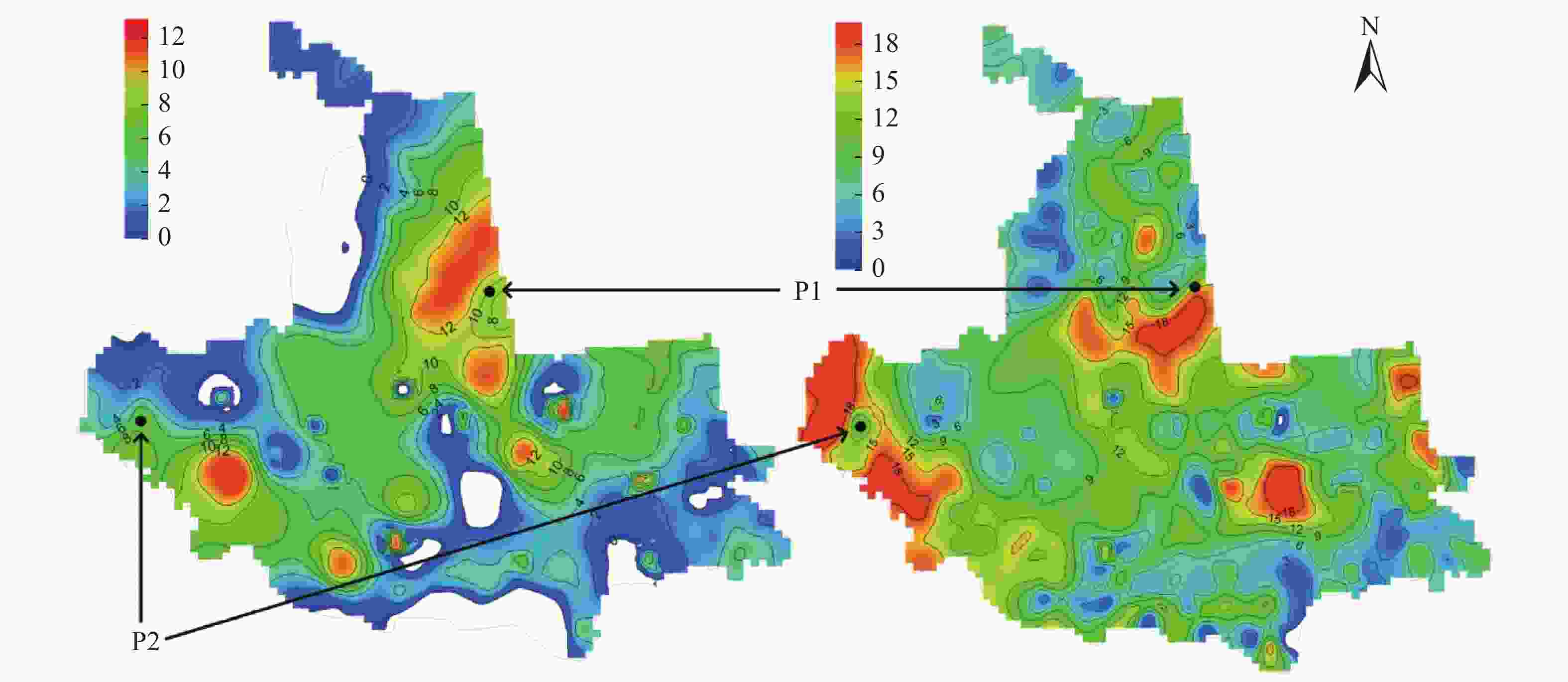

Figure 16. Comparison of spatial distribution of unsaturated zone thickness (left - SRTM DEM, right - Borehole elevation).

下载: 全尺寸图片幻灯片

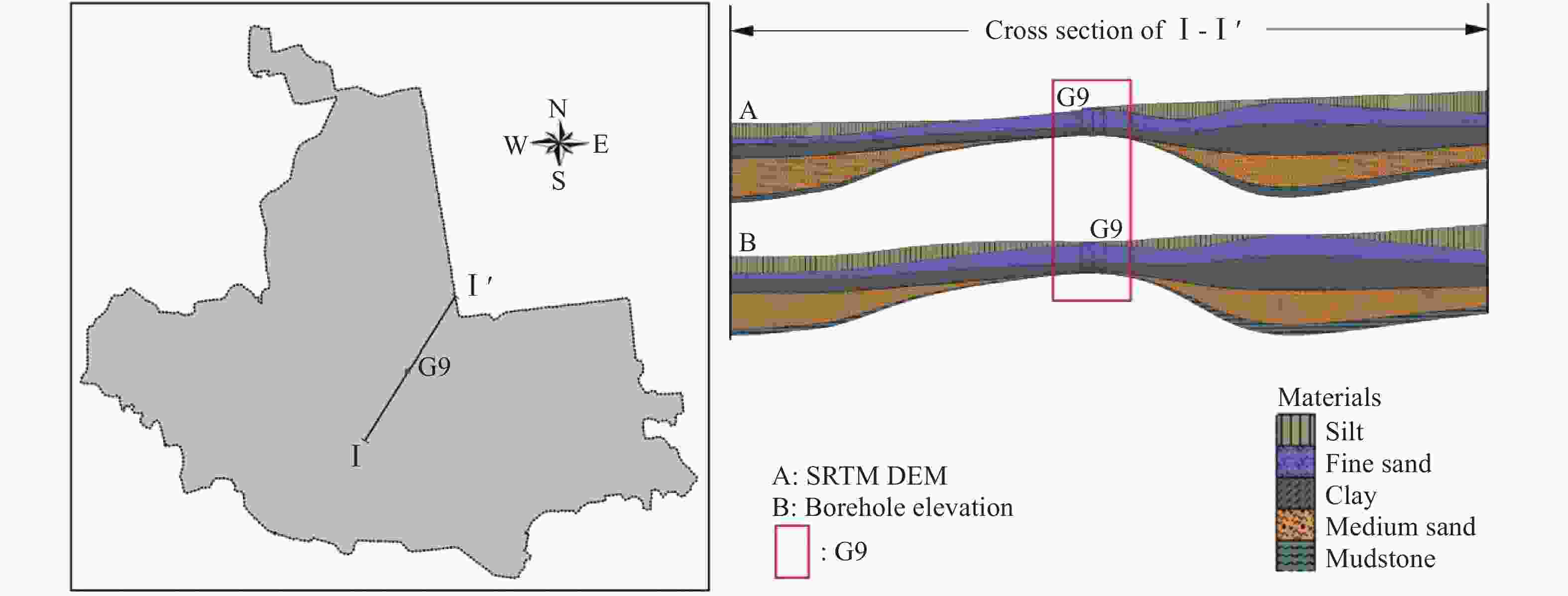

Figure 17. Lithology configuration difference

下载: 全尺寸图片幻灯片

Table 1. Hydraulic parameters values

Type of aquifer	Parameter partitioning	K_h (m/d)	K_v (m/d)	S_y	S_s (1/m)	Effective porosity
Unconfined aquifer	Ⅰ	4	0.4	0.1		0.3
	Ⅱ-Ⅳ	6	0.6	0.1		0.3
	Ⅴ	8	0.8	0.1		0.3
Aquitard		0.001	0.0001		0.000001	0.3
Notes: The starting head in the model uses the water level data observed in the observation wells on January 1,2012.

下载: 导出CSV

Table 2. Monthly rainfall and evaporation in 2012

Month	1	2	3	4	5	6	7	8	9	10	11	12
Rainfall (mm)	0.1	1.6	11.6	27.9	11.7	99.9	118.4	48.5	68.6	36.2	31.6	9.8
Evaporation (mm)	11.8	27	91.1	228.3	320.1	270	213.7	177.2	148.2	112.2	43.1	16.5

下载: 导出CSV

Table 3. Agricultural irrigation volume

Township	Area (km²)	Irrigation volume (10⁴ m³)	Recharge rate (m/d)
Shuangfa Township	145.52	151.7	0.000011
Tuogu Township	184.07	166.9	0.0000096
Zhaozhou Town	200.51	390.7	0.0000206
Yongle Town	175.88	185.6	0.0000112
Xinfu Township	358.79	333.1	0.0000098
Xingcheng Town	340.54	287.8	0.0000089
Fengle Town	132.2	174.7	0.000014
Yongsheng Township	136.03	164.7	0.0000128
Yushu Township	184.28	186.5	0.0000107
Chaoyanggou Town	156.05	189.7	0.0000128
Chaoyang Township	131.64	147.8	0.0000119
Erjing Town	230.37	297.7	0.0000137
Weixing Breeding Farm	85.06	60.1	0.0000075
Le Yuan Township	25.26	22.9	0.0000096

下载: 导出CSV

Table 4. Main coefficients for the study area

Study area/km²	Rainfall infiltration recharge factor	Irrigation infiltration recharge factor	Soil evaporation coefficient
2,445	0.189	0.13	0.042

下载: 导出CSV

Table 5. Hydrogeological parameter calibration results

Parameter partitioning	Hydraulic conductivity (m/d)	Specific yield
Ⅰ	4.57	0.06
Ⅱ	6.35	0.08
Ⅲ	7.64	0.12
Ⅳ	6.42	0.09
Ⅴ	8.95	0.14

下载: 导出CSV

Table 6. Ⅵ and Ⅶ, hydrological parameter calibration results

Parameter partitioning	Hydraulic conductivity (m/d)	Specific yield
Ⅵ	7.94	0.11
Ⅶ	7.89	0.11

下载: 导出CSV

Table 7. Basis for the layout of virtual boreholes

Type	Virtual borehole numbering
Information gap areas	XN1, XN2, XN3, XN4, XN11
Areas with high topographic gradient (areas with distinct color transitions in Fig. 12)	XN9, XN10, XN12, XN13
Boundary areas of the study area	XN5, XN6, XN7, XN8, XN14

下载: 导出CSV

Table 8. Hydrogeological parameter data

Parameter partitioning	Hydraulic conductivity (m/d)	Specific yield
Ⅰ	2.46	0.06
Ⅱ	4.88	0.07
Ⅲ	5.45	0.11
Ⅳ	5.31	0.08
Ⅴ	6.87	0.12

下载: 导出CSV

Table 9. Analysis of unsaturated zone thickness

Position	SRTM DEM thickness (m)	Borehole model thickness (m)	Relative deviation (%)
Northeast P1	8.2	12.3	50.0
Western P2	6.5	9.1	40.0

下载: 导出CSV

Table 10. Variation of ET flow out with unsaturated zone thickness

Type	Values
Unsaturated zone thickness (m)	6.5	8	9	9.1	10
ET Flow Out (m³/d)	93.92	30.68	7.14	6.34	0

下载: 导出CSV

Table 11. Comparison of lithology-hydraulic parameters of G9 unsaturated zone

Type	SRTM DEM model	Borehole elevation model
Lithology of unsaturated zone	Fine sand	Silt, fine sand
Hydraulic conductivity (m/d)	7.64	5.45

下载: 导出CSV
