Evaluation of shallow geothermal energy resources in the Beijing-Tianjin-Hebei Plain based on land use

Yuan Ruo-xi Wang Gui-ling Liu Feng Zhang Wei Wang Wan-li Cao Sheng-wei

Yuan Ruo-xi, Wang Gui-ling, Liu Feng, et al. 2021: Evaluation of shallow geothermal energy resources in the Beijing-Tianjin-Hebei Plain based on land use. Journal of Groundwater Science and Engineering, 9(2): 129-139. doi: 10.19637/j.cnki.2305-7068.2021.02.005
Citation: Yuan Ruo-xi, Wang Gui-ling, Liu Feng, et al. 2021: Evaluation of shallow geothermal energy resources in the Beijing-Tianjin-Hebei Plain based on land use. Journal of Groundwater Science and Engineering, 9(2): 129-139. doi: 10.19637/j.cnki.2305-7068.2021.02.005

doi: 10.19637/j.cnki.2305-7068.2021.02.005

Evaluation of shallow geothermal energy resources in the Beijing-Tianjin-Hebei Plain based on land use

More Information
    Author Bio:

    Yuan Ruoxi, female, born in 1992, master's degree, mainly engaged in research and evaluation of geothermal resources; Email: 234408031@qq.com

    Corresponding author: wanliwang2010@163.com
    • 关键词:
    •  /
    •  /
    •  /
    •

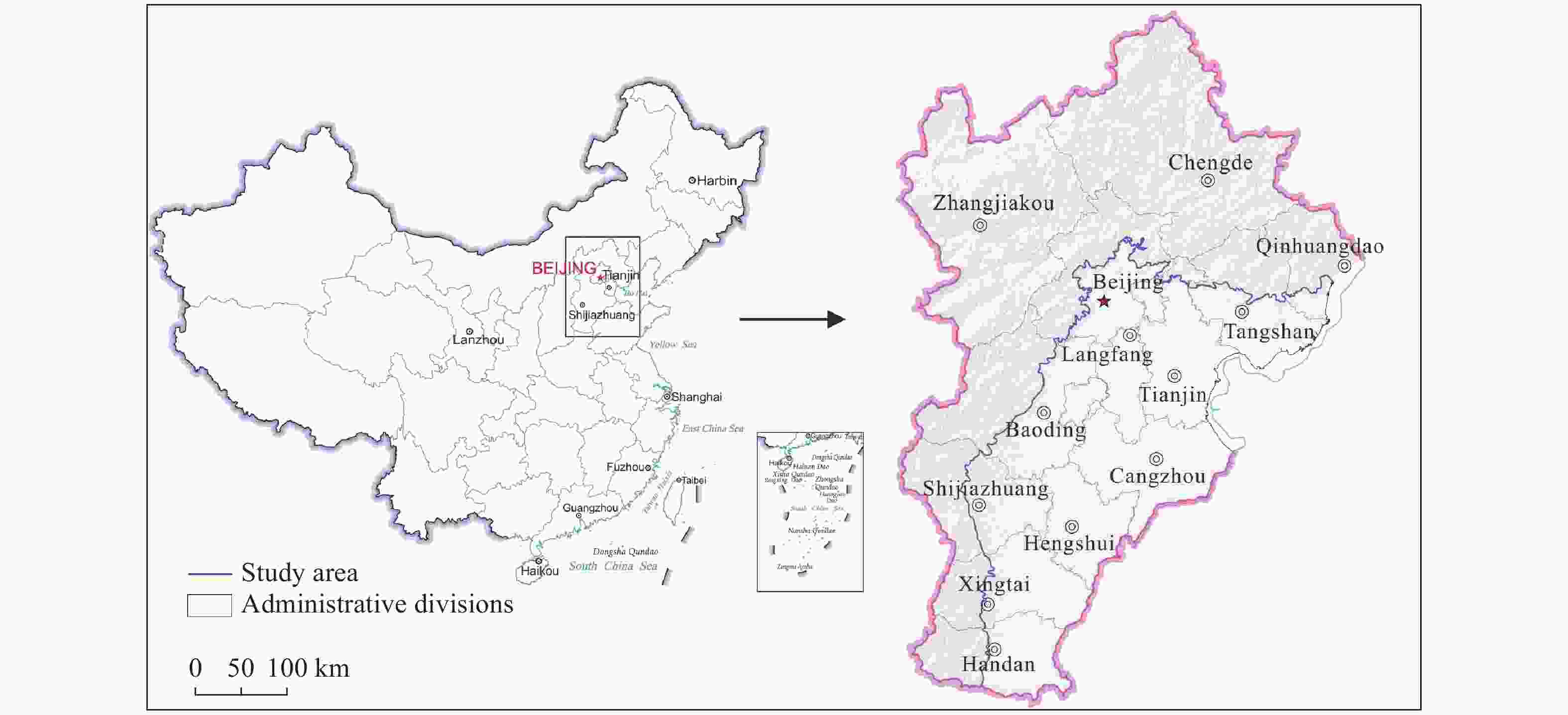

  • Figure  1.  Scope of the study area

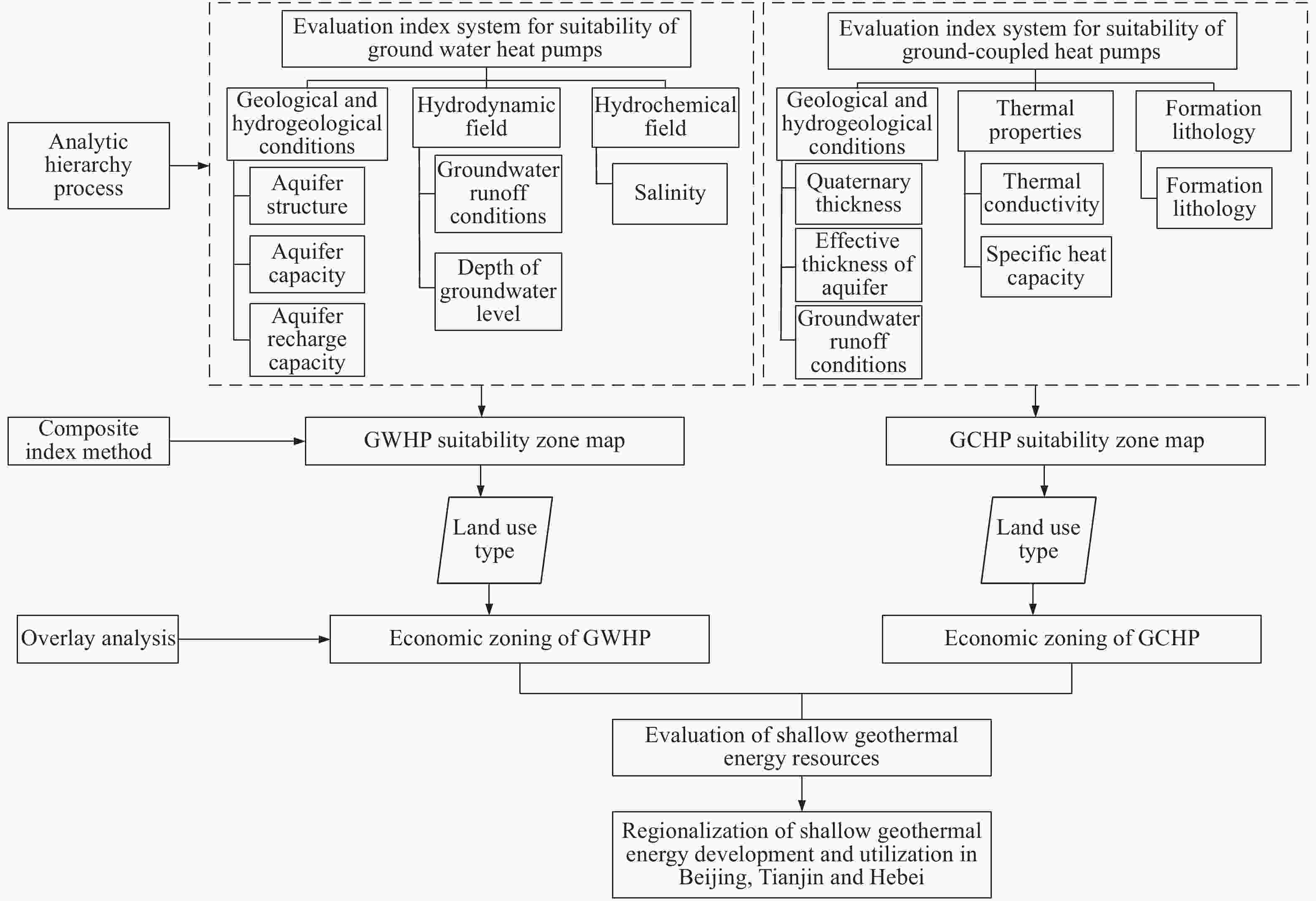

    Figure  2.  Flow chart of shallow geothermal resources evaluation in Beijing-Tianjin-Hebei Plain

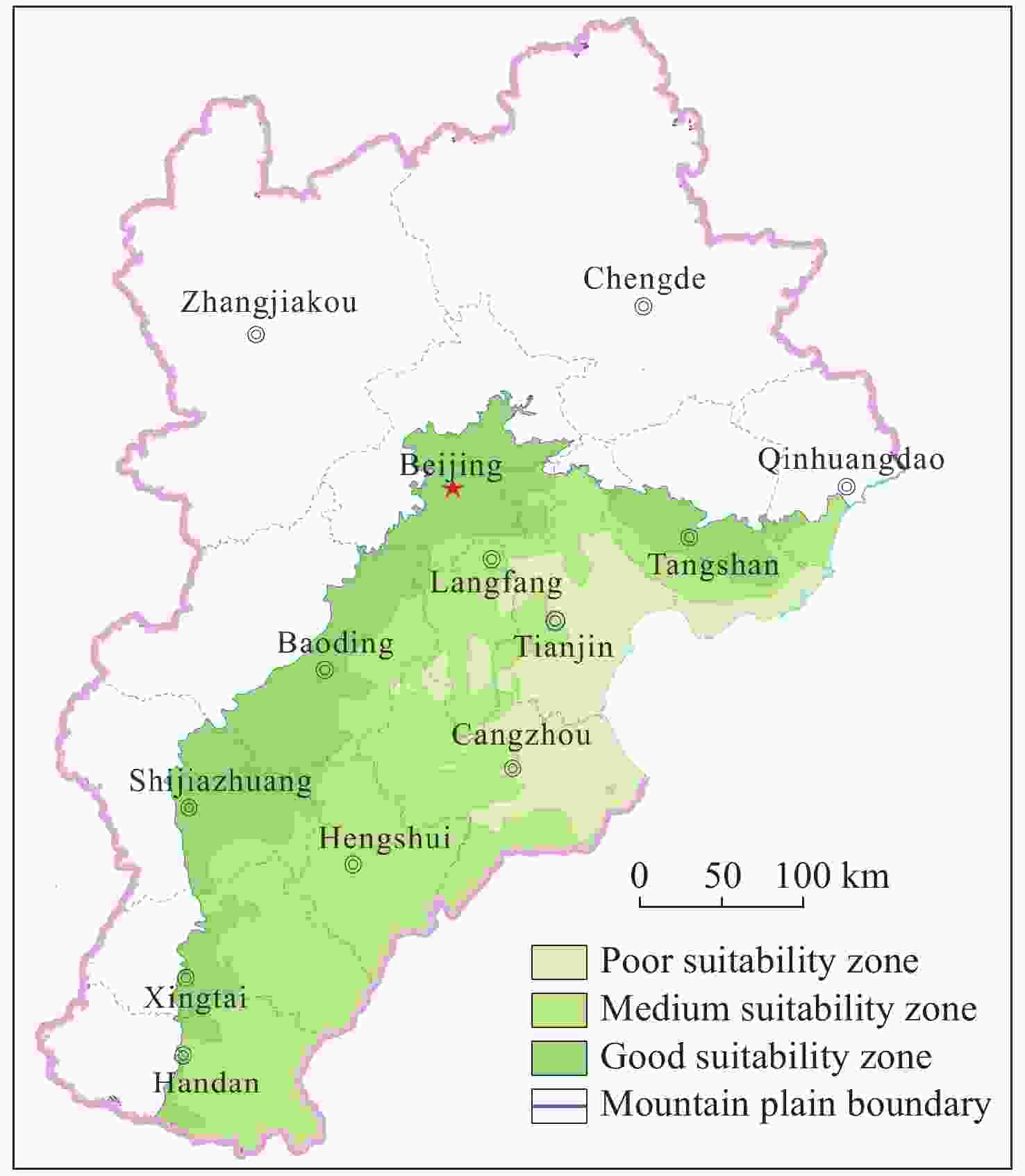

    Figure  3.  Suitability zoning of GWHP

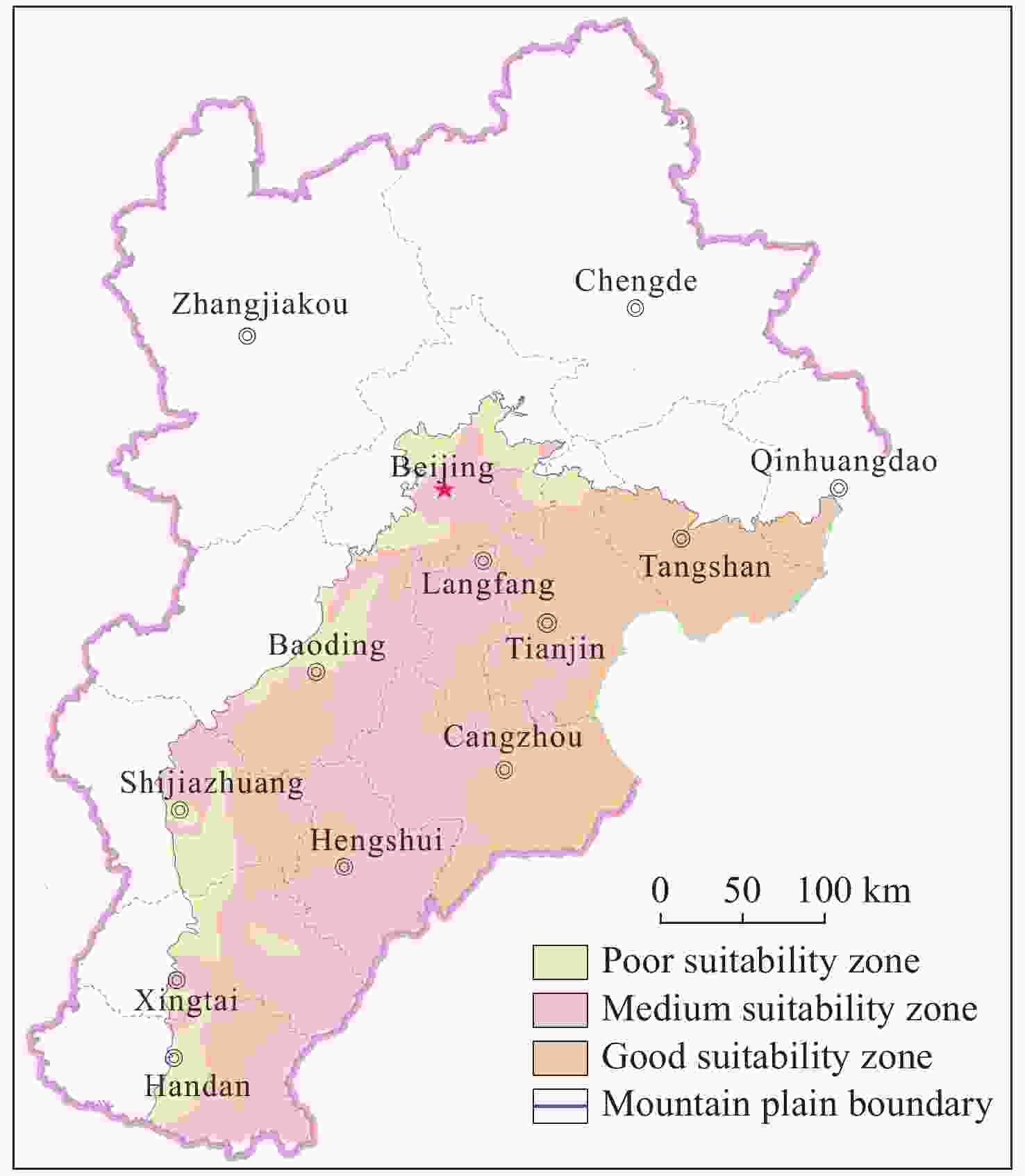

    Figure  4.  Suitability zoning of GCHP

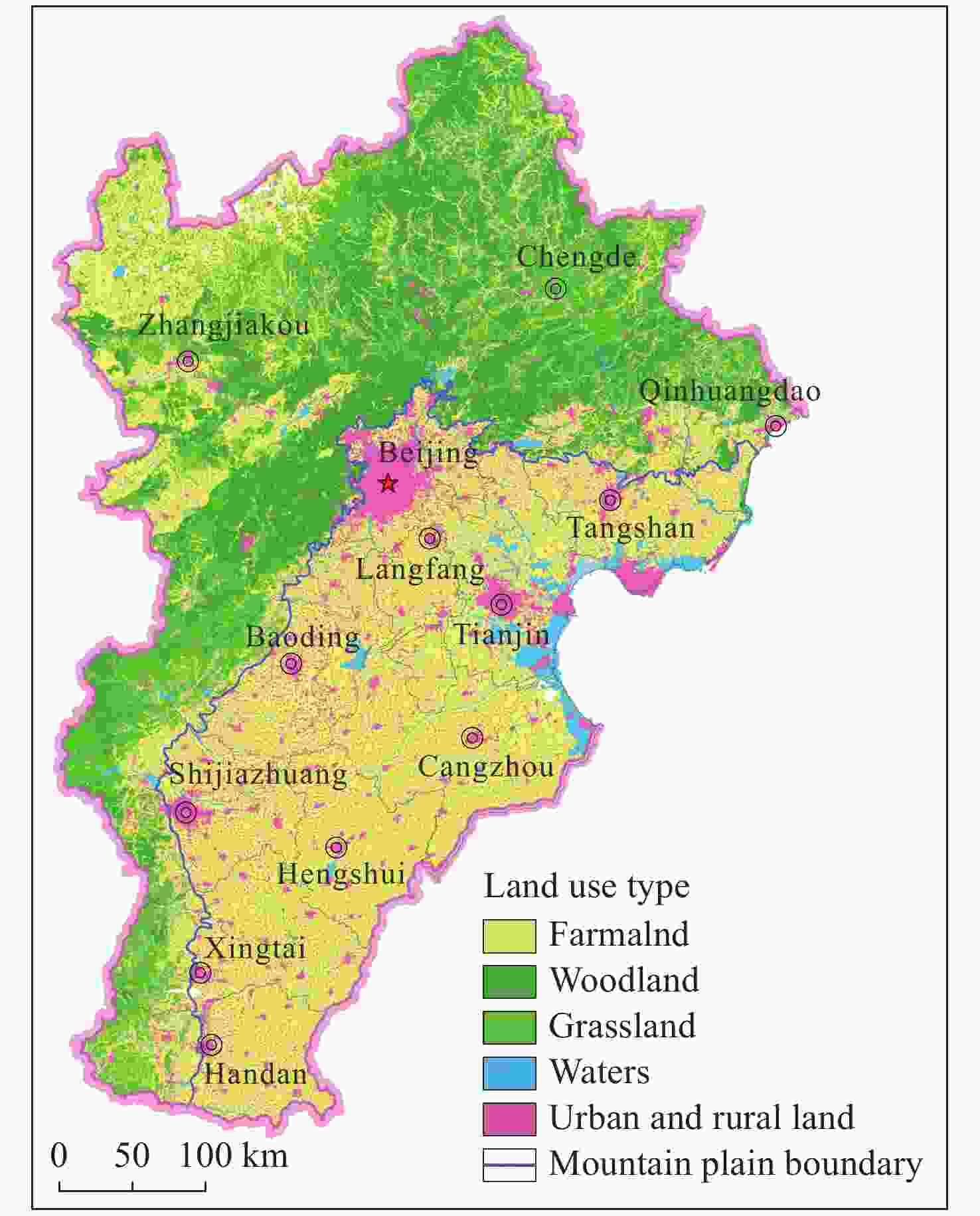

    Figure  5.  Land use pattern in Beijing-Tianjin-Hebei region (2018)

    Figure  6.  Protection zoning of GWHP

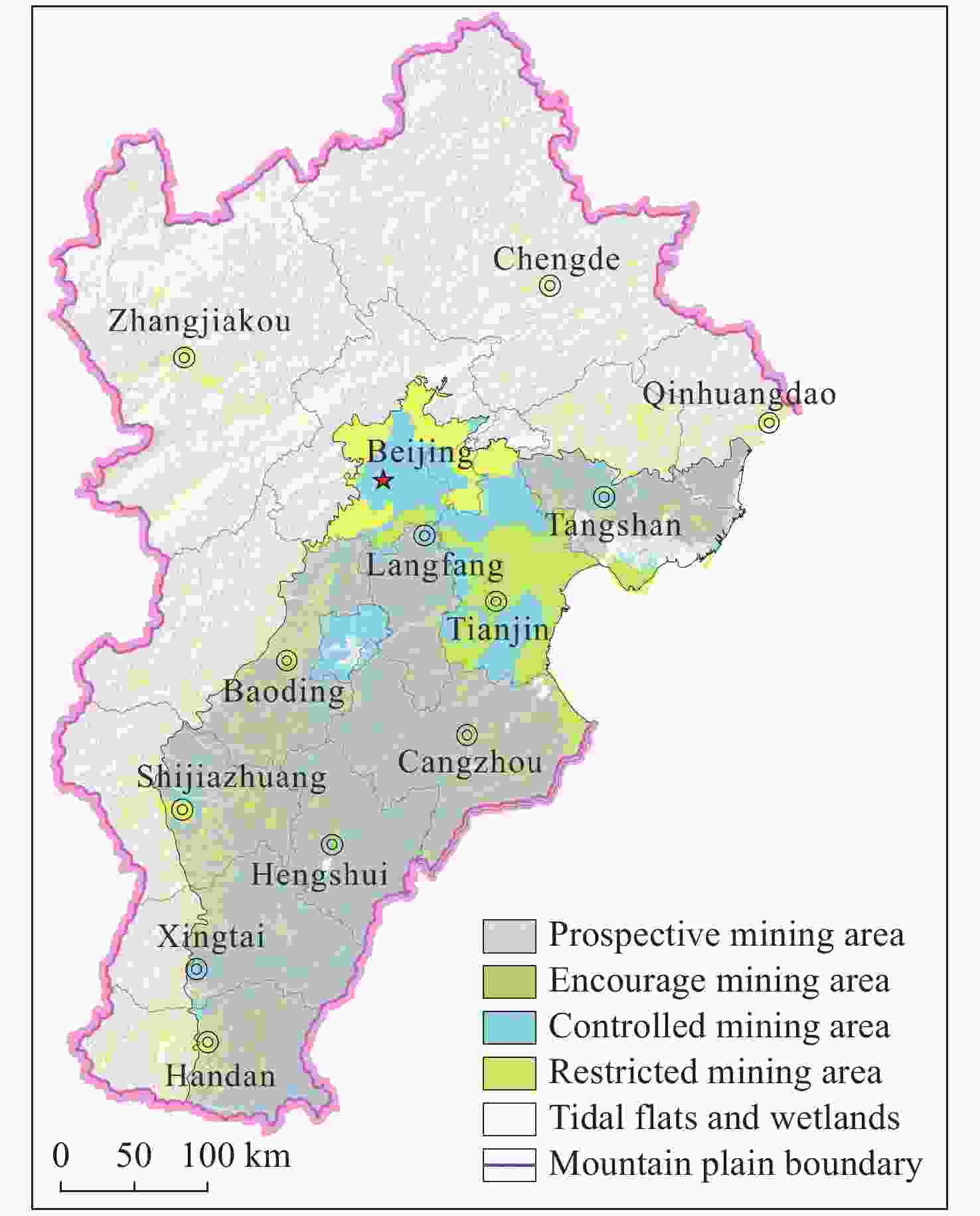

    Figure  7.  Protection zoning of GCHP

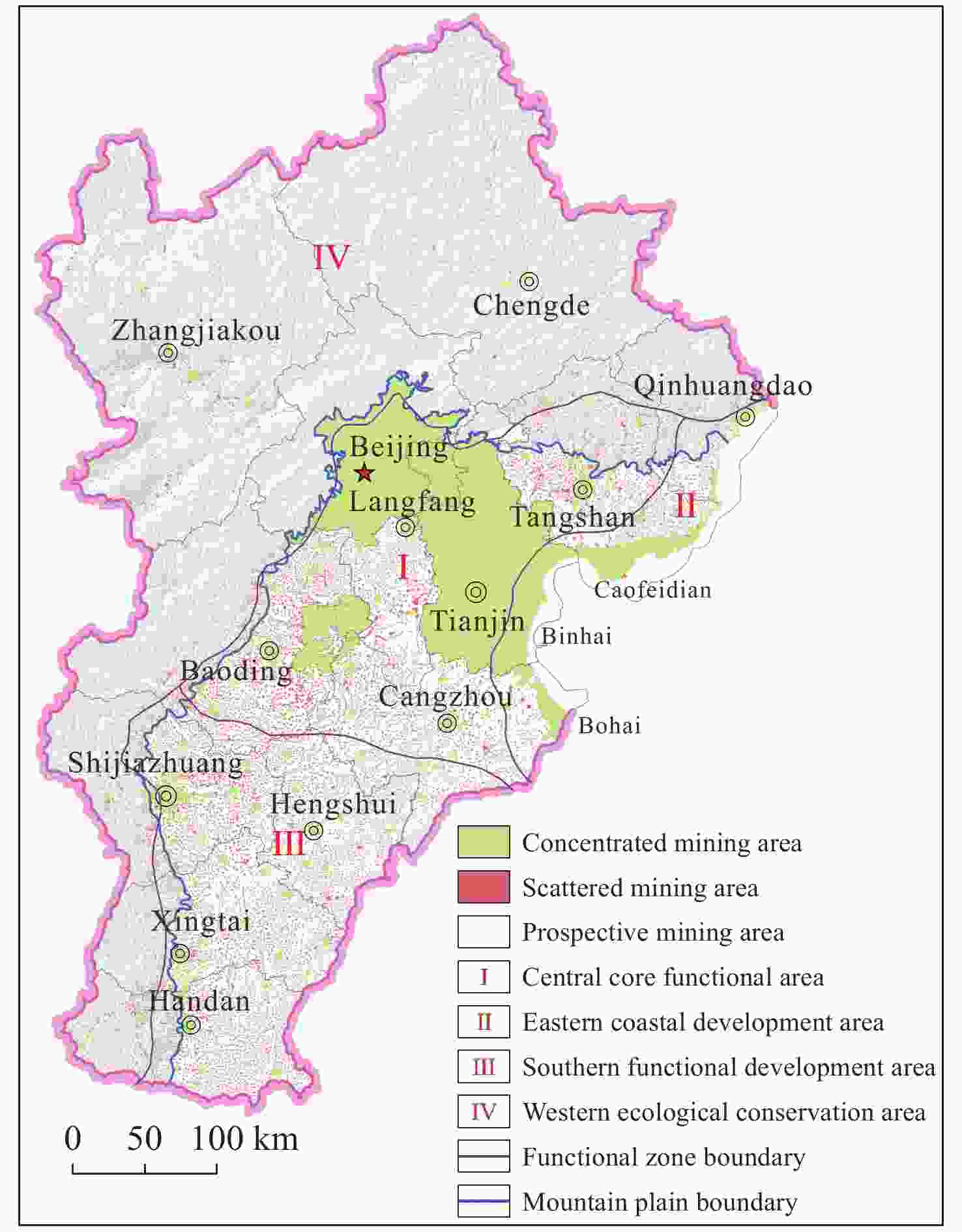

    Figure  8.  Development and utilization zoning for shallow geothermal energy in Beijing-Tianjin-Hebei region

    Table  1.   GWHP suitability evaluation index classification quantitative standard

    ProjectWeight coefficientElement gradingValue assignment
    Aquifer recharge capacity (%) (considering the proportion of extraction and
    irrigation wells)
    0.310 6≤303
    30-506
    50-708
    ≥709
    Aquifer yield capacity (m3/h·m)
    (expressed in unit flow rate)
    0.310 65-106
    10-308
    ≥309
    Depth of groundwater
    level (m)
    0.149 9≤103
    10-155
    15-257
    ≥255
    Salinity (g/L)0.116 8≥21
    1-25
    ≤19
    Aquifer structure0.062 1Medium coarse sand with pebbles3
    Coarse sand6
    Fine sand, medium fine sand, silt sand9
    Groundwater runoff conditions (m/d)
    (expressed by permeability coefficient)
    0.050 0≤103
    10-205
    20-507
    下载: 导出CSV

    Table  2.   GCHP suitability evaluation index classification quantitative standard

    ProjectWeight coefficientGradeValue assignment
    Quaternary thickness (m)0.237 1≤301
    30-1005
    ≥1009
    Effective thickness of aquifer (m)0.094 1≥409
    20-405
    ≤203
    Groundwater runoff conditions (expressed by permeability coefficient)0.149 4≤101
    10-203
    20-505
    50-1007
    ≥1009
    Thermal Conductivity (W/m·℃)0.270 3≤1.53
    1.5-1.75
    ≥1.77
    Specific heat (kJ/kg·℃)0.135 1≥1.79
    1.7-1.45
    ≤1.21
    Formation lithology0.114 0Coarse sand layer in gravel3
    Silt9
    Fine medium sand3
    Fine sand6
    下载: 导出CSV

    Table  3.   Heating (cooling) areas of economically usable amount of shallow geothermal energy in Beijing-Tianjin-Hebei

    AreaHeating (cooling) area of GWHP (108 m2)Heating (cooling) area of GCHP (108 m2)Comprehensive heating
    (cooling) area (108 m2)
    SummerWinterSummerWinterSummerWinter
    Beijing1.410.921.740.921.630.92
    Tianjin0.650.415.442.863.842.04
    Baoding0.980.631.610.861.40.78
    Langfang0.320.210.810.410.650.34
    Shijiazhuang0.460.290.510.260.490.27
    Hengshui0.090.060.730.450.520.32
    Cangzhou0.070.041.230.700.840.48
    Xingtai0.220.150.630.400.490.32
    Handan0.190.120.470.310.380.25
    Tangshan0.300.191.000.430.770.35
    Qinhuangdao0.050.030.110.050.090.04
    Total4.743.0514.287.6511.16.12
    下载: 导出CSV
  • China Geological Survey. Handbook of Hydrogeology(Second Edition). 2012. Beijing: Geological Publishing House. (in Chinese)
    Francesco T, Sara K, Mohame E, et al. 2018. Suitability evaluation of specific shallow geothermal technologies using a GIS-Based multi criteria decision analysis implementing the analytic hierarchic process. Energies, 11(2): 457. doi:  10.3390/en11020457
    Guan Y, Wei YX, Chen XF, et al. 2014. Methodological study of suitability zoning of shallow geothermal development and utilization-with shallow geothermal energy investigation and assessment as example. Geology of Anhui, 24(1): 28-31. (in Chinese)
    Lin WJ. 2012a. The study of thermal regulation and storage capacity in shallow geological environment and it’s availability. Chinese Academy of Geological Sciences. (in Chinese)
    Lin WJ, Wu QH, Wang GL. 2012b. Shallow geothermal energy resource potential evaluation and environmental effect in China. Journal of Arid Land Resources and Environment, 26(3): 58-61. (in Chinese)
    Long XT, Yuan RQ, Pi JG, et al. 2016. Survey and evaluation of shallow geothermal energy in Changsha. Journal of Natural Resources, 31(1): 163-176. (in Chinese)
    Luo J, Joachim Rohn, Wei X, et al. 2016. A review of ground investigations for ground source heat pump (GSHP) systems. Energy and Buildings, 117: 160-175. doi:  10.1016/j.enbuild.2016.02.038
    Ma F, Wang XY, Wang GL, et al. 2015. Analysis of the potential and development prospects of shallow geothermal energy and hot dry rock resources. Science & Technology Review, 33(19): 49-53.
    Saaty TL. 1990. How to make a decision: The analytic hierarchy process. European Journal of Operational Research, 48(1): 9-26. doi:  10.1287/inte.24.6.19
    Somogyi V, Sebestyen V, Nagy G. 2017. Scientific achievements and regulation of shallow geothermal systems in six European countries-A review. Renewable and Sustainable Energy Reviews, 68(2): 934-952. doi:  10.1016/j.rser.2016.02.014i
    Standards of the Geological Mining Industry of the People's Republic of China. Specification for Shallow Geothermal Energy Investigation and Evaluation (DZ/T0225-2009). Beijing: Ministry of Land and Resources of the People’s Republic of China. (in Chinese)
    Wang GL, Zhang W, Liang JY, et al. 2017a. Evaluation of Geothermal Resources Potential in China. Acta Geoscientica Sinica, 38(4): 449-459. (in Chinese)
    Wang GL, Zhang W, Lin WJ, et al. 2017b. Research on formation mode and development potential of geothermal resources in Beijing-Tianjin-Hebei region. Geology in China, 44(6): 1074-1085. (in Chinese)
    Wang GL. 2018. Atlas of shallow geothermal energy in major cities of China. Science Press. (in Chinese)
    Wang GL, Liu YG, Zhu X, et al. 2020. The status and deveiopment of geothermal resources in China. Earth Science Frontiers, 27(1): 001-009. (in Chinese)
    Wang WL, Wang GL, Zhu X, et al. 2017. Characteristics and potential of shallow geothermal resources in provincial capital cities of China. Geology in China, 44(6): 1062-1073. (in Chinese)
    Wei WS, Zheng JS, Li WW, et al. 2010. Evaluation of shallow geothermal energy resources. China Cartographic Publishing House. (in Chinese)
    Wu Y. 2014. The research on environmental problems and key technologies of shallow geothermal energy. China University of Geosiences. (in Chinese)
    Xing H, Di YS, Yong Y. 2019. Analysis on the law of occurrence of shallow geothermal energy in Zhoukou City of Henan Province, China. Journal of Groundwater Science and Engineering, 7(3): 282-287. doi:  10.19637/j.cnki.2305-7068.2019.03.008
    Yuan RX, Liu F. 2020. The assessment of shallow geothermal resources in Beijing-Tianjin-Hebei region promotes the development of green energy in this Area. News Letters of China Geological Survey, 6(3): 17-21. (in Chinese)
    Zhang ZJ, Fei YH. 2009. Atlas of groundwater sustainable utilization in north china plain. China Cartographic Publishing House.
    Zhu X, Zhang QL, Wang WL, et al. 2015. Study on the influencing factors of rock-soil thermophysical parameters in shallow geothermal energy. Journal of Groundwater Science and Engineering, 3(3): 256-267.
    Zhu X, Zhang QL, Wang GL, et al. 2018. Evaluation of shallow geothermal resources in Hebei Province. China Energy and Environmental Protection, 40(10): 127-131. (in Chinese)
